Aluminum PROFILES for LED strips

Aluminum PROFILES for LED strips

We present you high quality aluminum PROFILES for use with LED strips. The aluminum profiles VIVALUX are designed for use in combination with LED strips facilitating their installation and increase their opportunities for application. The profiles are used in the installation of LED strips in the interior and exterior lighting, where the aim is to create interesting lighting effects - in pubs, restaurants, hotels, lighting of facades by focusing on the steps of the staircases, in decorative niches and ceilings, glowing elements in furniture etc.

Key benefits

  • Standardized profile length 2 meters with the possibility to adjust the length depending on the application.
  • The internal optimized dimensions allow the use of flexible LED strip with a width of 8 mm and 10 mm.
  • Depending on the shape profiles allow to be installed in combination with LED strips on a flat surface (PROFILE S), built-in (PROFILE IN) and for corner mounting (PROFILE A).
  • Made from high quality extruded anodized aluminum used in aircraft.
  • Polycarbonate matt diffuser - reduces unpleasant glare and promotes a better sense of light.
  • Set includes 4 pieces of metal mounting elements (clips).

Specifications

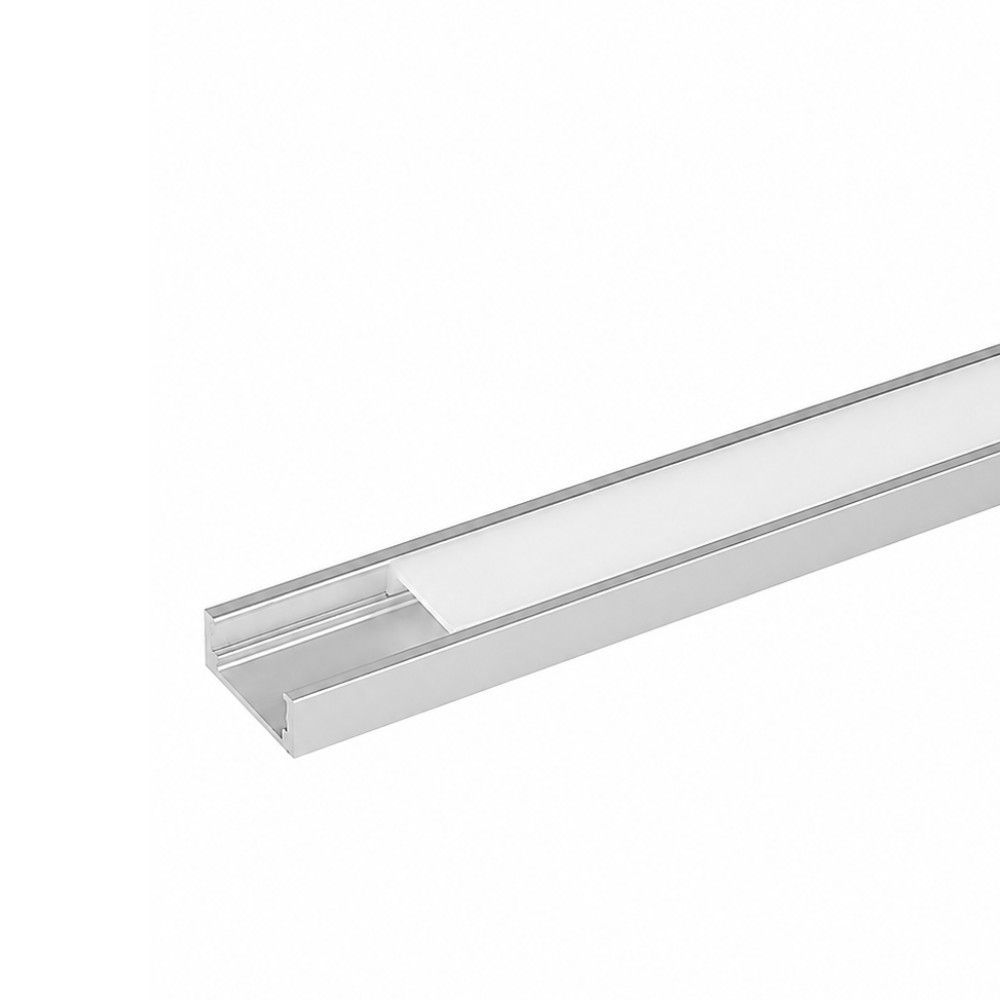

Aluminum PROFILE S

  • Material: extruded anodized aluminum
  • Diffuser: polycarbonate, matt
  • Length: 2 m
  • Width of the LED strip: 8 to 10 mm
  • Installation: on a flat surface with included 4 pieces mounting elements (clips)
  • Degree of protection: IP20
  • Caps: 2 pieces polycarbonate, white, without a hole; and 2 pieces polycarbonate, white, with a hole.

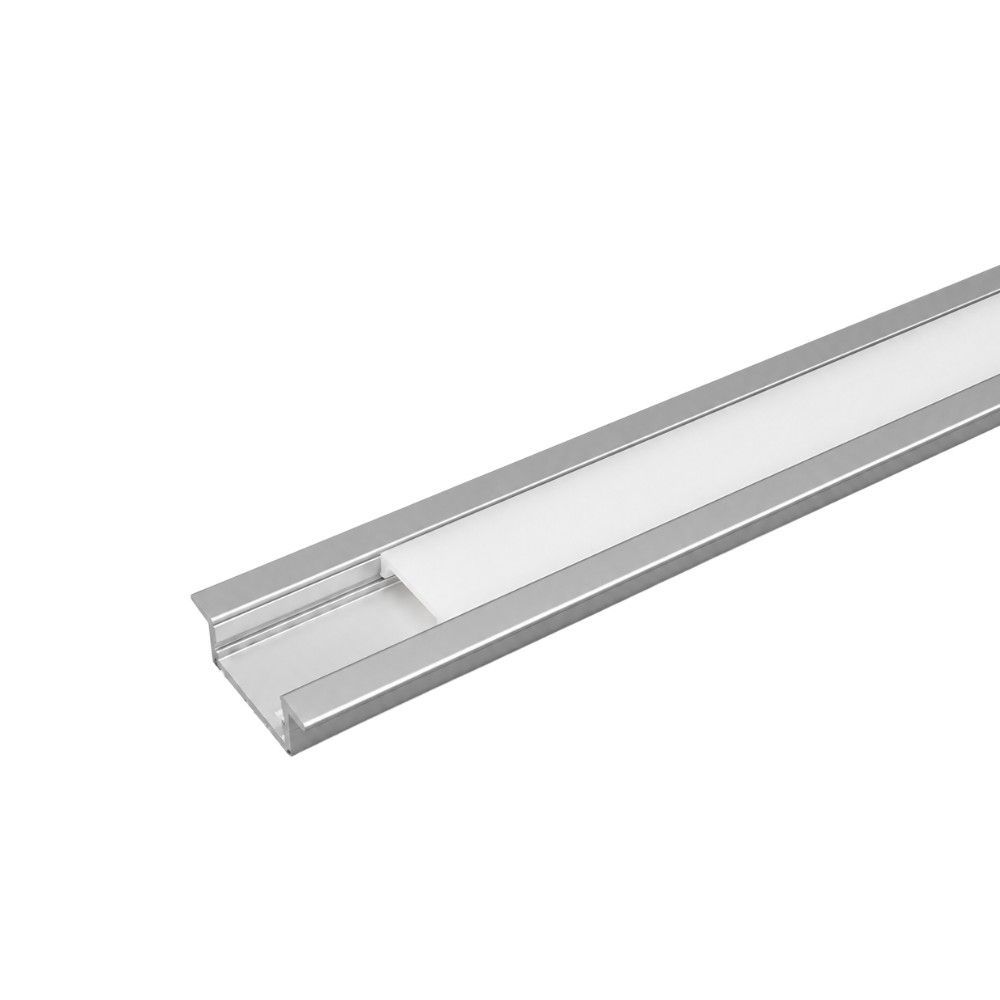

Aluminum PROFILE IN

  • Material: extruded anodized aluminum
  • Diffuser: polycarbonate, matt
  • Length: 2 m
  • Width of the LED strip: 8 to 10 mm
  • Installation: built-in channel (depth to 6 mm and width up to 18 mm) using the included 4 pieces mounting elements (clips)
  • Degree of protection: IP20
  • Caps: 2 pieces polycarbonate, white, without a hole; and 2 pieces polycarbonate, white, with a hole.

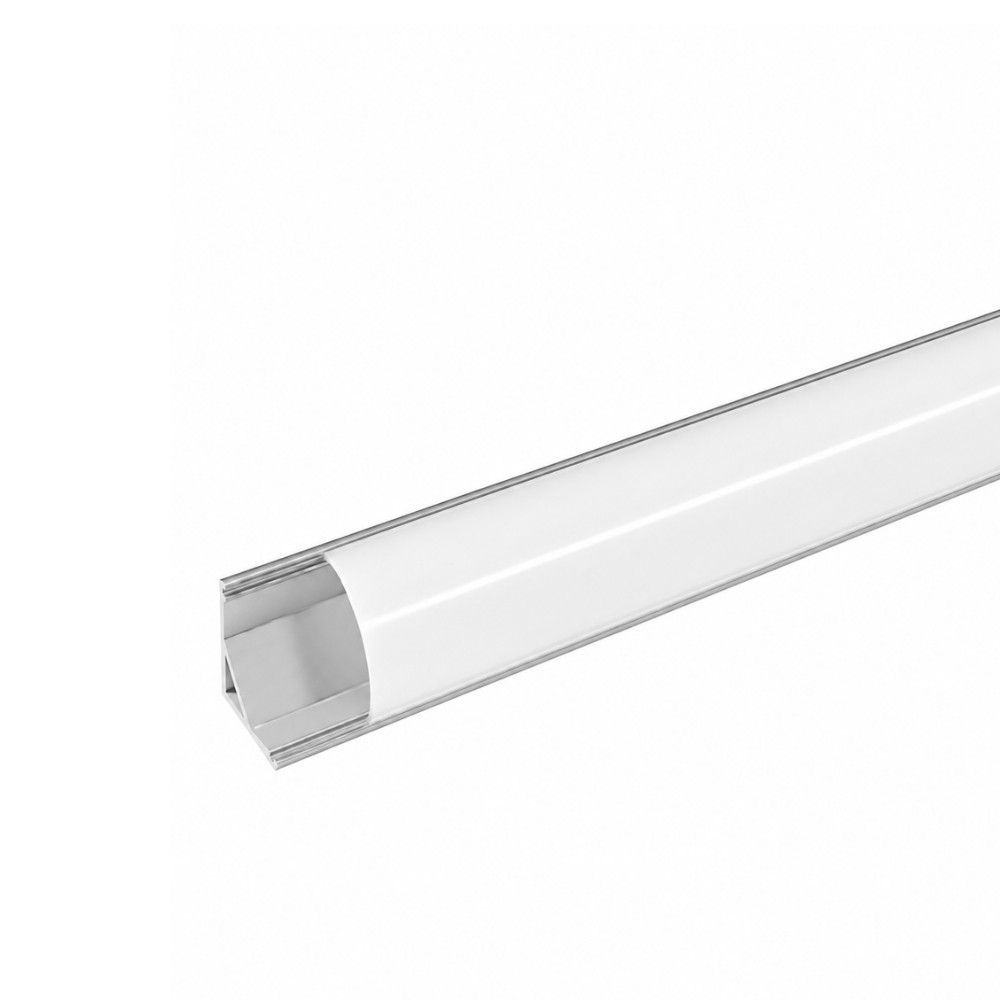

Aluminum PROFILE A

  • Material: extruded anodized aluminum
  • Diffuser: polycarbonate, matt
  • Length: 2 m
  • Width of the LED strip: 8 to 10 mm
  • Installation: corner installation with the included 4 pieces mounting elements (clips)
  • Degree of protection: IP20
  • Caps: 2 pieces polycarbonate, white, without a hole; and 2 pieces polycarbonate, white, with a hole.

Products assigned to the news

  • Aluminum profile for LED strips PROFILE S 2M KIT

  • Aluminum profile for LED strips PROFILE A 2M KIT

  • Aluminum profile for LED strips PROFILE IN 2M KIT

  • End caps kit S

  • End caps kit A

  • End caps kit IN

  • Mounting clips S kit

  • Mounting clips A kit
