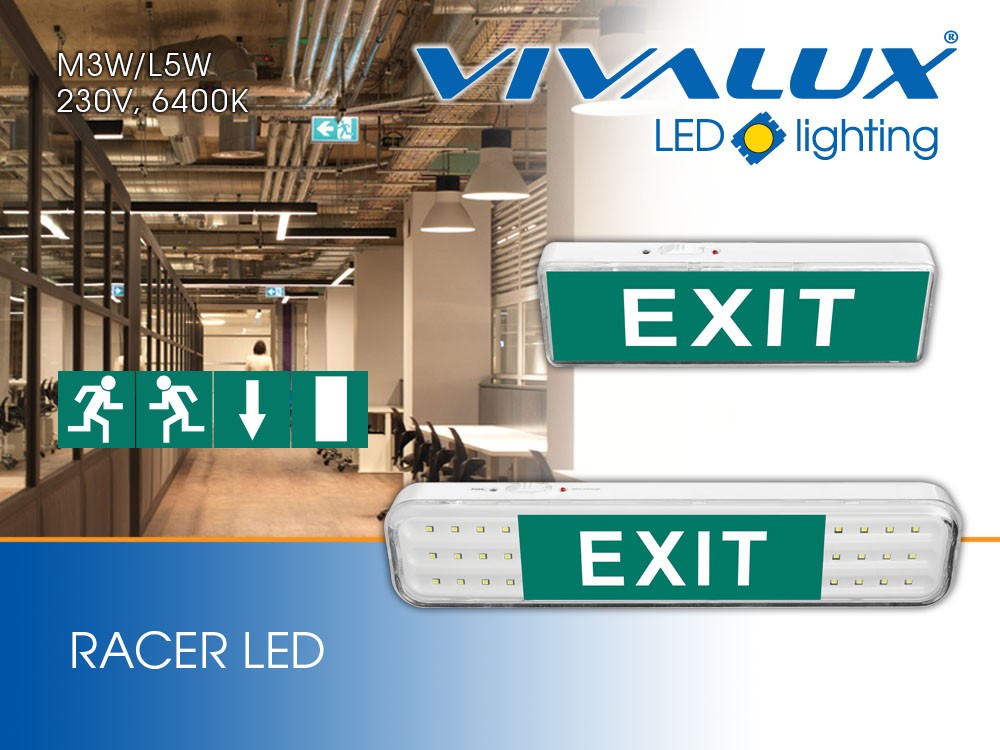

RACER LED emergency lighting fixtures series

The RACER LED emergency lighting fixtures come complete with 2 stickers - one with EXIT sign and the other with pictograms. Thus they can be used as internal illuminated safety signs.

The light output of the two bodies in the series RACER LED is sufficient to cover the required horizontal illuminance on the floor along the escape route to be not less than 1 lx and bodies can be used to illuminate the road for evacuation.

Main advantages

  • maximum visual distance d = 14 m;
  • equipped with a charging indicator and a slider for switching off or switching between 2 modes of operation: with a higher luminous flux or a lower luminous flux and a duration of illumination of 3.5 hours and 7 hours, respectively;
  • available with 2 stickers to be used according to the place of installation of the signboard: sign EXIT or pictograms to indicate the direction of evacuation;
  • power cord with terminal block for direct connection to the electrical network.

Technical specifications RACER LED

  • Power: 3W; 5W
  • Voltage: 230V
  • Discharge time: 3.5-7 h
  • Charging time: 24h
  • Battery: Li-Ion 3.7V 1000mAh (RACER LED M 3W); Li-Ion 3.7V 2000mAh (RACER LED L 5W)
  • Light stream (lm): 160 lm (high)/80 lm (low) - RACER LED M 3W; 200 lm (high)/100 lm (low) - RACER LED L 5W
  • Color temperature: 6400K
  • Humidity and dust protection: IP20
  • Color rendering index: Ra ≥ 80
  • Dimensions: 230*72*30 mm (RACER LED M 3W); 330*72*30 mm (RACER LED L 5W)
  • Color: white
  • Warranty: 24 months.
