Compact motion sensor KYLO SR36

Tuesday, November 6, 2018

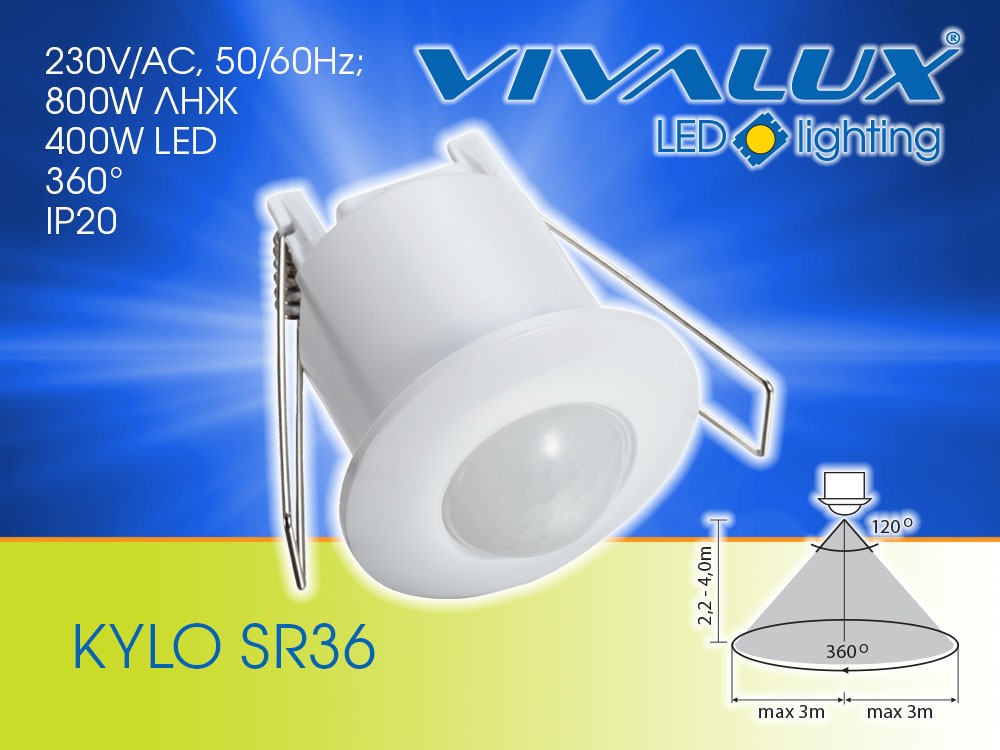

Compact motion sensor KYLO SR36

The VIVALUX sensors offer an extremely convenient solution for lighting control. Today we offer to our customers another model of a practical KYLO SR36 small-size motion sensor designed to be built into a suspended ceiling.

The structure of the sensor housing allows it to be embedded in a mounting hole with a diameter - only 42 mm. The KYLO SR36 workflow sliders are located under the front panel, which allows for further changes even after the sensor has been installed.

Main advantages

  • compact housing and clean design;
  • convenient adjustment of slider operation under the front panel;
  • easy to connect to the electrical network through a protective terminal on the back of the housing;
  • reliable operation over a long period of time after proper installation.

Specifications

  • Power supply: 230V/АС, 50/60Hz.
  • Rated load: 800W for incandescent lamps; 400W LED.
  • Detection range: 360°.
  • Detection distance: max 6m (adjustable).
  • Time delay: 10sec (±3sec) ÷ 15min (±2min) (adjustable).
  • Ambient lighting: <3÷2000lux (adjustable).
  • Consumption: 0,5W.
  • Detection moving speed: 0.6÷1.5m/s.
  • Degree of protection: IP20.
  • Installation height: 2,2÷4m.
  • Warranty: 12 months.
