Series LED downlights DION LED with motion sensor

Series LED downlights DION LED with motion sensor

Series LED downlights DION LED with motion sensor

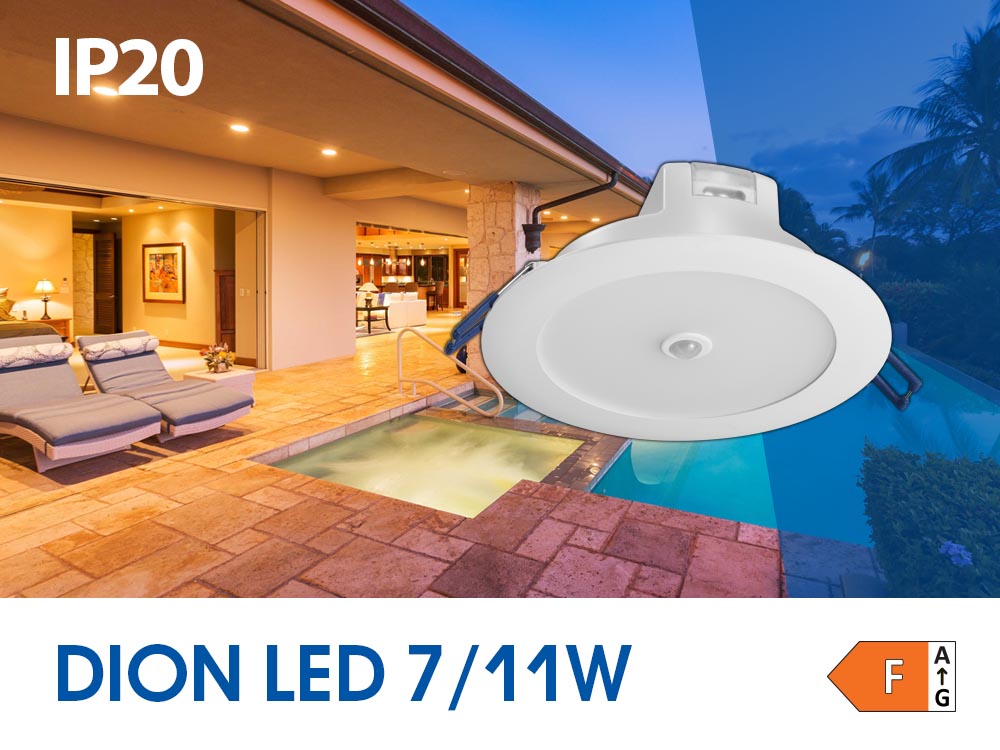

LED luminaire control has a new alternative with the series DION LED VIVALUX. DION LED recessed ceiling fixtures have an integrated infrared motion sensor and are available in two sizes:

  • Ø105 mm with power 7W
  • Ø140 mm with power 11W.

Both downlights have the ability to control an additional load of 500W, i.e. the other LED fixtures in the room can be connected to them.

Main advantages

  • compact body and clean design;
  • convenient adjustment of the work with sliders on the body of the downlights;
  • easy connection to the electrical network through a protective terminal;
  • reliable operation over a long period of time.

Technical specifications

  • Voltage: 230V
  • Power: 7W; 11W
  • Lumens (lm): 7W: 600 lm; 11W: 1200 lm
  • Color temperature: 4000K (cool light)
  • 120° beam angle
  • Dimensions: 7W - Ø105 x 66 mm; 11W - Ø140 x 66 mm;
  • Mounting hole: 7W - Ø90 mm; 11W – Ø120 mm;
  • Dimmable: no
  • Life time: 50 000 hrs
  • Degree of protection: IP20
  • Switching power: max 500W
  • Scope of action: 360°
  • Range of action: max 6m (adjustable)
  • Retention time: 10sec (±3sec) ÷ 15min (±2min) (adjustable)
  • General lighting: <3÷2000lux (adjustable)
  • Installation height: 1.8÷3 m
  • Warranty: 24 months.

Products assigned to the news

  • LED downlight with motion sensor DION LED ∙ 11W ∙ SR36

    LED downlight with motion sensor DION LED ∙ 11W ∙ SR36
