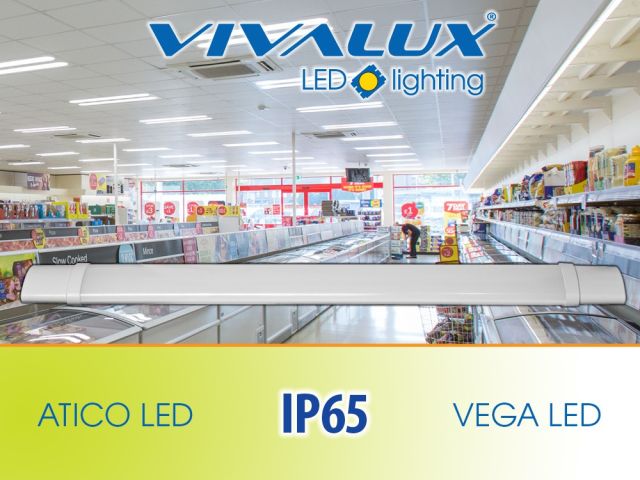

Waterproof LED lighting fixtures ATICO and VEGA LED Vivalux

Wednesday, February 14, 2018

We are pleased to introduce two new series waterproof lighting fixtures VIVALUX - ATICO LED series and VEGA LED high power series. The bodies in the two series have 3 types of protection: protection against corrosion, moisture and dust protection with IP65. They are suitable for application in a wide range of solutions for general lighting of industrial and warehouse facilities, road infrastructure: tunnels, covered bridges, etc., as well as various elements of the urban environment: bus and metro stations, indoor pedestrian zones, supermarkets, etc.

Main advantages

• lightweight housing made of high quality polycarbonate;
• impact rating IK08;
• two mounting options: directly on a ceiling; hung on steel ropes hanging from the ceiling;
• temperature: -20÷45°C.

Technical specifications ATICO LED

• Power: 18W; 36W; 45W
• Voltage: 230V, 50/60Hz
• Light stream (lm): 1650 lm (18W); 3350 lm (36W); 4200 lm (45W)
• Light output: 92 lm/W (18W); 93 lm/W (36W; 45W)
• 120° beam angle
• Colour temperature: 4000K (cool light)
• Useful life time: 30 000 h
• Switch on/off cycles: 15 000x
• Colour rendering index ≥70
• Index of moisture and dust protection: IP65
• Impact rating: IK08
• Dimensions: 18W - 662x75x35 mm; 36W - 1262x75x35 mm; 45W - 1562x75x35 mm
• Dimmable: no
• Warranty: 24 months.

Technical specifications VEGA LED

• Power: 60W, 70W
• Voltage: 230V, 50/60Hz
• Light stream (lm): 5100 lm (60W), 6000 lm (70W)
• Light output: 85 lm/W
• 120° beam angle
• Colour temperature: 4000K (cool light)
• Useful life time: 30 000 h
• Switch on/off cycles: 15 000x
• Colour rendering index ≥70
• Index of moisture and dust protection: IP65
• Impact rating: IK08
• Dimensions: 1262x75x35 mm (60W); 1562x75x35 mm (70W)
• Dimmable: no
• Warranty: 24 months.
