New motion sensors ROGER SR36 and NEXO SR36

Friday, August 21, 2020

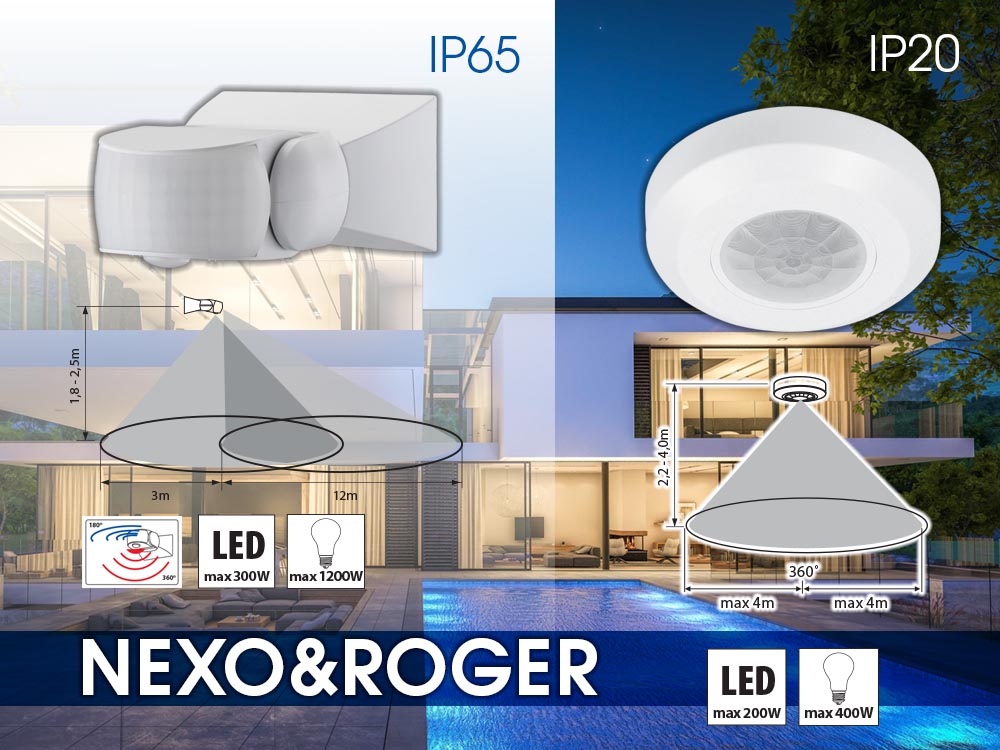

We are expanding the range of VIVALUX sensors and include two models of infrared sensors for lighting control.

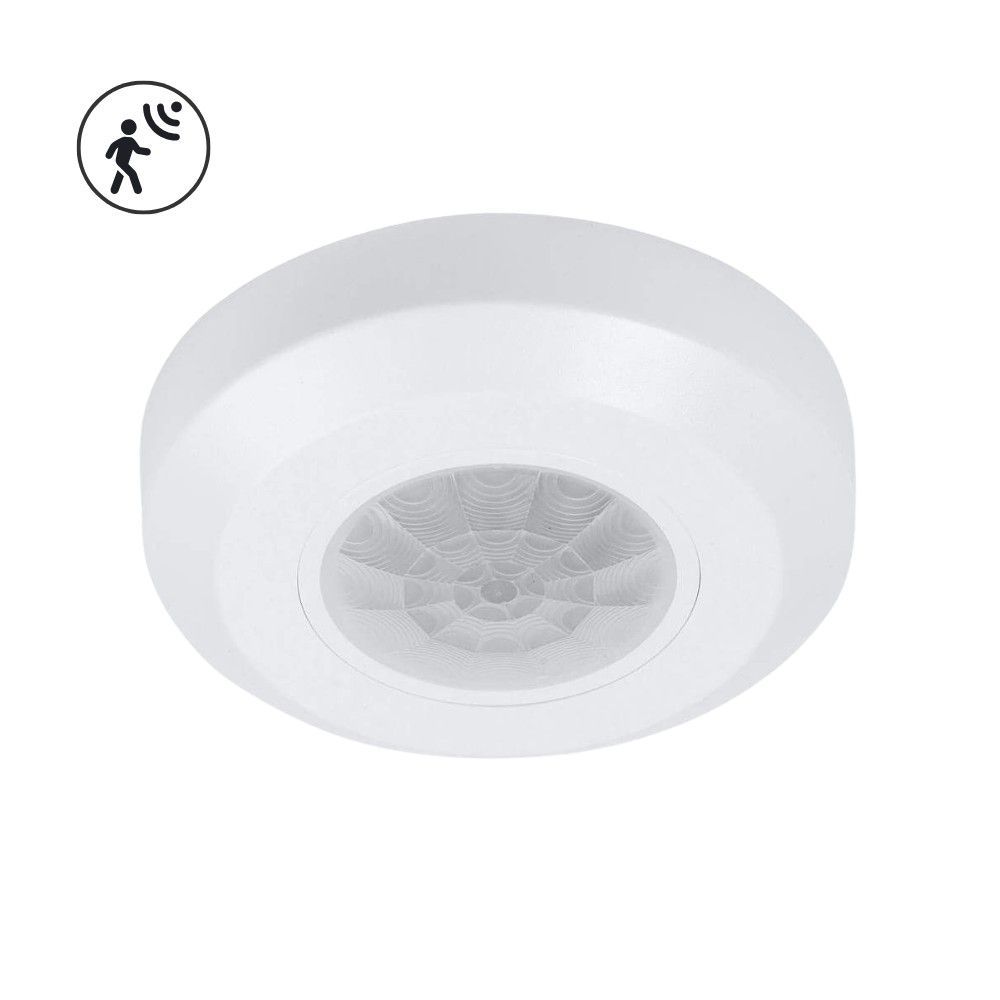

ROGER SR36 is a sensor for outdoor installation on the ceiling or wall with ultra compact size. Under its front panel there are sliders that allow you to adjust its operation. ROGER SR36 can control LED lamps with a total power up to 200W.

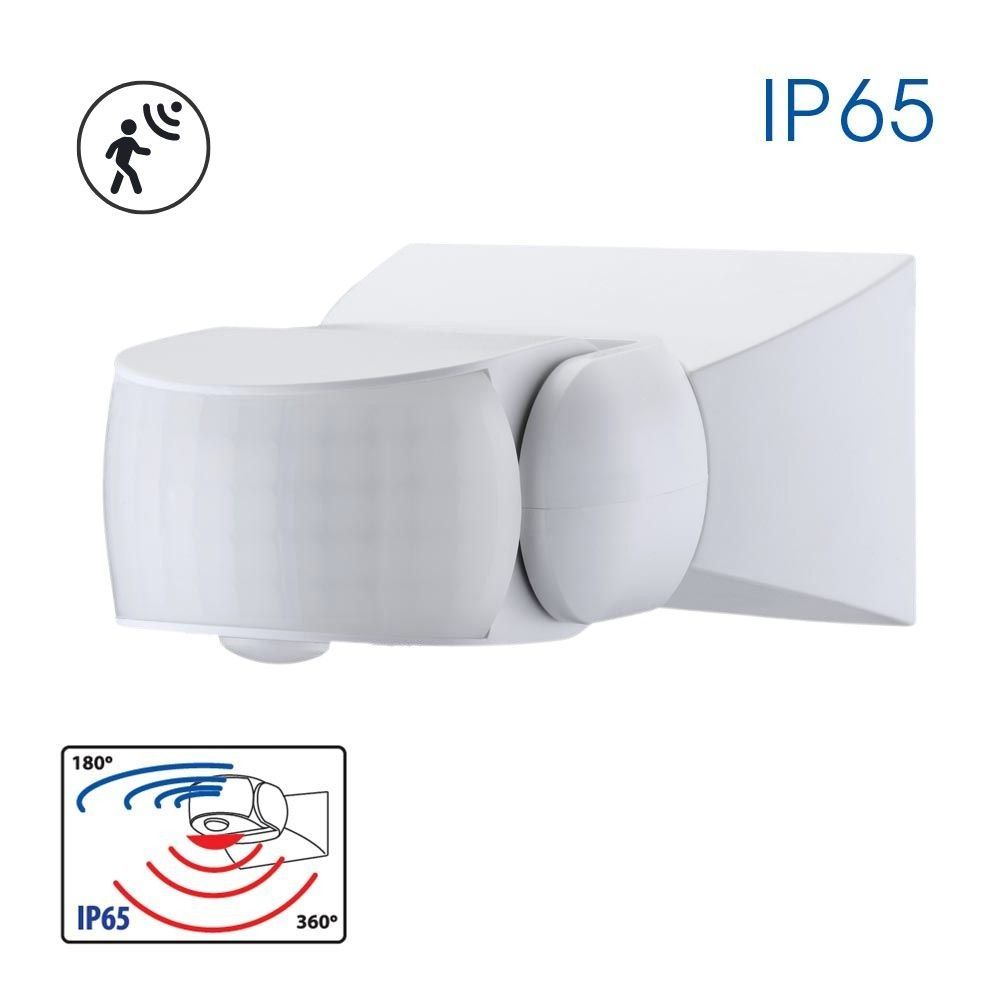

NEXO SR36 is a dual waterproof motion sensor designed for wall mounting. Its two recording elements are located in different planes and thus provide a wider range of action at an angle of 360° below the sensor and an additional 180° in front of the sensor. Its IP65 moisture protection allows the NEXO SR36 to be used outdoors.

Main advantages ROGER SR36

• Dimensions: Ø76x20.2 mm
• Power supply voltage: 230V/АС, 50/60Hz
• Switching power: 400W incandescent lamp; 200W LED
• Scope of action: 360°
• Range of action: max 8m (<24C°)
• Retention time: 10sec (±3sec) ÷ 7min (±2min) (adjustable)
• General lighting: <3÷2000lux (adjustable)
• Consumption: 0,5W
• Reported speed: 0.6÷1.5m/s
• Class of protection: IP20
• Installation height: 2,2÷4m.

Main advantages NEXO SR36

• Dimensions: 80x51.5x119.5 mm
• Power supply voltage: 230V/АС, 50/60Hz
• Switching power: 1200W incandescent lamp; 300W LED
• Scope of action: 360°+180°
• Range of action: max 12m (<24C°)
• Retention time: 10sec (±3sec) ÷ 15min (±2min) (adjustable)
• General lighting: <3÷2000lux (adjustable)
• Consumption: 0,5W
• Reported speed: 0.6÷1.5m/s
• Class of protection: IP65
• Installation height: 1,8÷2,5 m.
