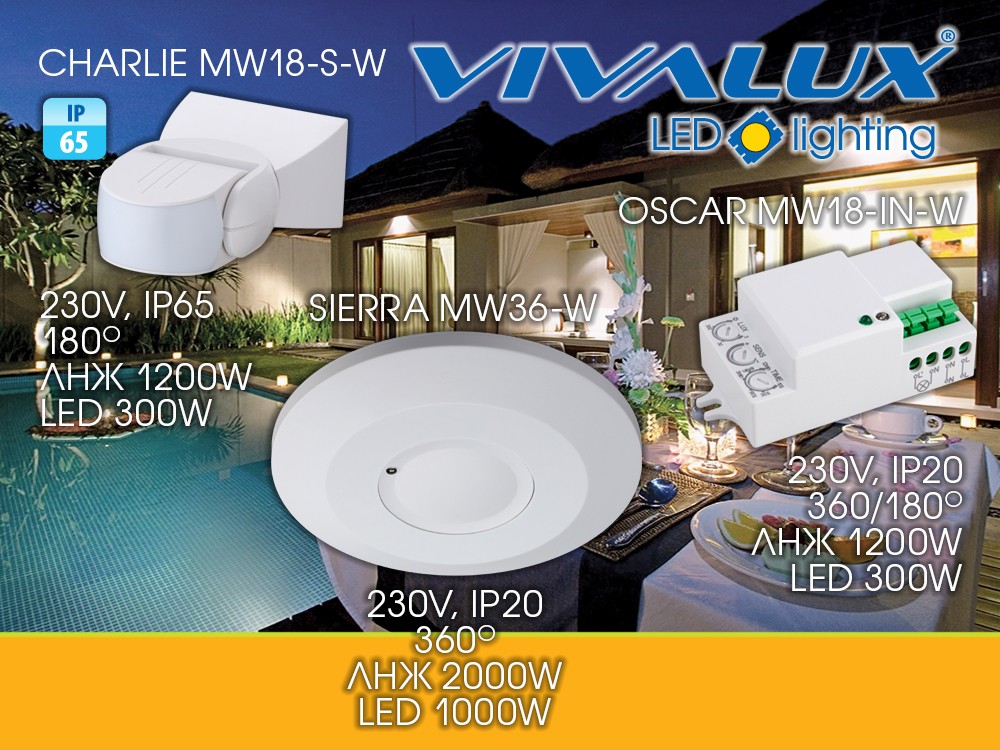

Microwave motion sensors CHARLIE, SIERRA and OSCAR

Microwave motion sensors CHARLIE, SIERRA and OSCAR

Microwave motion sensors CHARLIE MW18-SW, SIERRA MW36-W and OSCAR MW18-IN-W control the lighting in places where go many people and where necessary lighting for a relatively short period of time - passages, entrances of buildings and yards, car parks, staircases and corridors of residential and public buildings, etc.

Microwave sensors CHARLIE, SIERRA and OSCAR are energy-efficient switches combining automatism, practicality, convenience and safety. They work with high-frequency electromagnetic waves and this allows them to record movement behind doors, glass panels and even thinner walls, automatically recognizing day and night.

Microwave motion sensor CHARLIE MW18-S-W

  • Supply voltage: 230V/AC, 50/60Hz
  • Power: 1200W incandescent lamp; 300W LED
  • Range: 180°
  • Distance: 5-15 m (adjustable)
  • Total illumination: <3-2000 lux (adjustable)
  • Retention time: min 10 sec ± 3 sec; max 12 min ± 1 min
  • Installation: on wall
  • Height of installation: 1.5-3.5 m
  • Class of protection: IP65
  • Total consumption: 0.9W
  • Permissible humidity: <93% RH.

Microwave motion sensor SIERRA MW36-W

  • Supply voltage: 230V/AC, 50/60Hz
  • Power: 2000W incandescent lamp; 1000W LED
  • Range: 360°
  • Distance: 1-8 m (adjustable)
  • Total illumination: <3-2000 lux (adjustable)
  • Retention time: min 10 sec ± 3 sec; max 12 min ± 1 min
  • Installation: on ceiling
  • Height of installation: 2-6 m
  • Class of protection: IP20
  • Total consumption: 0.9W
  • Permissible humidity: <93% RH.

Microwave motion sensor OSCAR MW18-IN-W

  • Supply voltage: 230V/AC, 50/60Hz
  • Switching power: 1200W incandescent lamp, 300W LED
  • Range: 360°/180°
  • Distance: on ceiling - within a radius of 1-8 m (adjustable); on the wall: 5-15 m (adjustable)
  • Total illumination: <3-2000 lux (adjustable)
  • Retention time: min 10 sec ± 3 sec; max 12 min ± 1 min
  • Installation: on the wall/ceiling
  • Height of installation: on ceiling - 2-8 m; on the wall - 1.5-3.5 m
  • Class of protection: IP20
  • Total consumption: 0.9W
  • Permissible humidity: <93% RH.

Waterproof box INDIRA IP65 Microwave motion sensor OSCAR can be mounted in the waterproof box INDIRA. Waterproof box INDIRA IP65 is made from transparent polycarbonate, resistant to UV-rays and is suitable for use outdoors, regardless of weather conditions.

Products assigned to the news

  • Microwave motion sensor CHARLIE MW18-S-W

  • Microwave motion sensor SIERRA MW36-W

  • Microwave motion sensor OSCAR MW18-IN-W

  • Waterproof box INDIRA IP65
